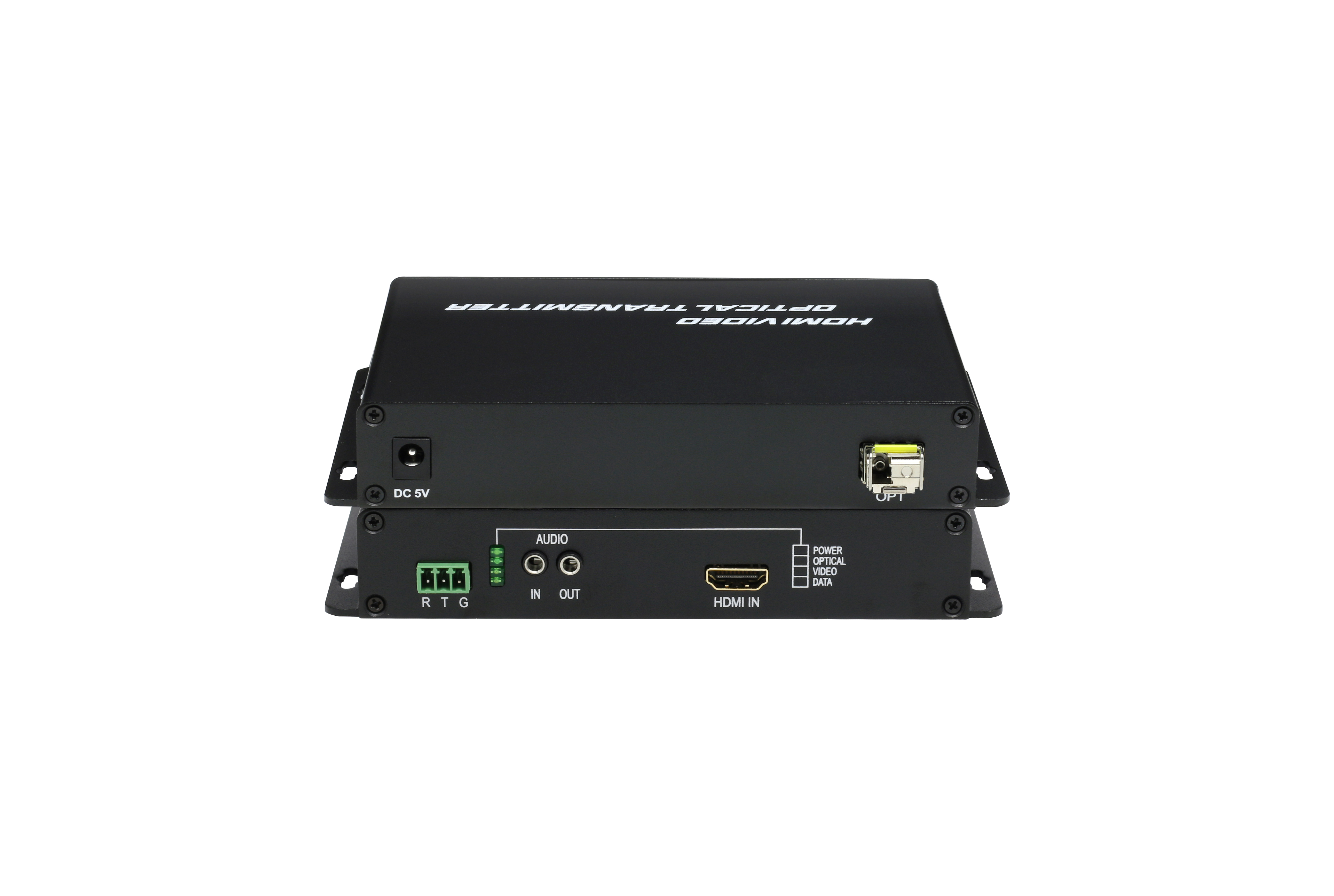

    1920X1080@60Hz HDMI SFP Optical Extender Fiber To HDMI Video Converter RS-232/485

    Ask Lasest Price
    Brand Name : ho-link
    Model Number : HL-HDMI-1V-T/RF
    Certification : CE RoHS FCC
    Price : negotiation
    Payment Terms : T/T or western Union or Paypal
    Supply Ability : 6000pairs one month
    Delivery Time : 3-5 working days
    • Product Details
    • Company Profile

    1920X1080@60Hz HDMI SFP Optical Extender Fiber To HDMI Video Converter RS-232/485

    1920X1080@60Hz HDMI SFP Optical Extender fiber to HDMI video converter,Data formatRS-232/422/485


    Overview

    HD digital video fiber optic transmitter and receiver transmits digital uncompressed video, audio and data for a long distance without distortion by 1CH unidirectional HDMI interface over 1 fiber. It also provides loopback interface for the input video signal.

    This series of products is widely used in such fields as radio and television, live rebroadcast, video surveillance, and security and defense.



    Features

    1) Full digital, uncompressed, high-definition fiber optic transmission
    2) 1ch unidirectional HDMI/DVI video signal, 2ch bidirectional audio signal, 1ch bidirectional data transmission
    3) HDMI1.3 standard, supports resolution up to 1920*1080P60
    4) Max transmission distance up to 80km without relay
    5) Function of alarm for remote device power failure, easy for maintenance
    6) Low consumption, play and plug function, adjustment-free installation
    7) Standalone and rack-mounted types, with rack-mount type supporting hot spare for power supply, and hot swap for boards


    Technical Parameter


    SPECIFICATIONS
    Optical
    Input/output
    wavelength
    1310/1550nm
    Fiber interface
    LC
    Fiber mode
    Single mode/multiple mode
    Transmission distance
    Single mode:20/40/80 km
    multiple mode: 300M
    Fiber number
    Single fiber or dual fibers
    Video
    Channel
    1ch unidirectional
    Interface
    HDMI TYPE A socket, can receive DVI signal by physical interface converter
    Resolution
    DTV:
    1280*720P @50Hz
    1280*720P @60Hz
    1920*1080i @50Hz
    1920*1080i @59.94/60Hz
    1920*1080P @59.94/60Hz
    PC:
    1024*768@70Hz
    1152*864@75Hz
    1280*720@60Hz
    1280*800@75Hz
    1280*960@60Hz
    1280*1024@60Hz
    1440*900@60Hz
    1600*900@60Hz
    Data
    Channel
    1ch
    Data format
    RS-232/422/485 (2 and 4 lines optional), Manchester code, Bi-phase
    Data baud rate
    0~115.2Kbps
    Data sample frequency
    2MHz
    Symbol error rate
    <10-9
    Connector
    PHOENIX
    Audio
    Channel
    2CH
    Sample frequency
    32KHz
    Sampling encoding
    18 bit
    Input
    impedance
    High impedance (nonequilibrium)
    Output
    impedance
    10 Ω(nonequilibrium)
    Input/out put
    voltage
    3.5Vp-p
    Insertion gain
    0dB±1dB
    frequency response
    0.07~14KHz@3dB
    SNR
    ≧85dB(weighting)
    Power supply
    Standalone (external power adapter)
    Input: 220V/AC
    Output: 12V/DC
    Power consumption: ≤3W
    Rack-mount (optional dual power hot backup)
    Input: 220V/AC
    Power consumption: ≤42W
    Machinery
    Standalone (mm)
    200*156*33
    Rack-mount (mm)
    480*177*370 (standard 19 inch 4U, 14 slots)
    Free standing: Max 2W
    Rack mount: Max 42W with full rack
    Environment
    Operating temperature
    -40℃~+75℃
    Storage temperature
    -40℃~+85℃
    Humidity
    ≤95% no condensing

    Product connection diagram


    System connection diagram:
