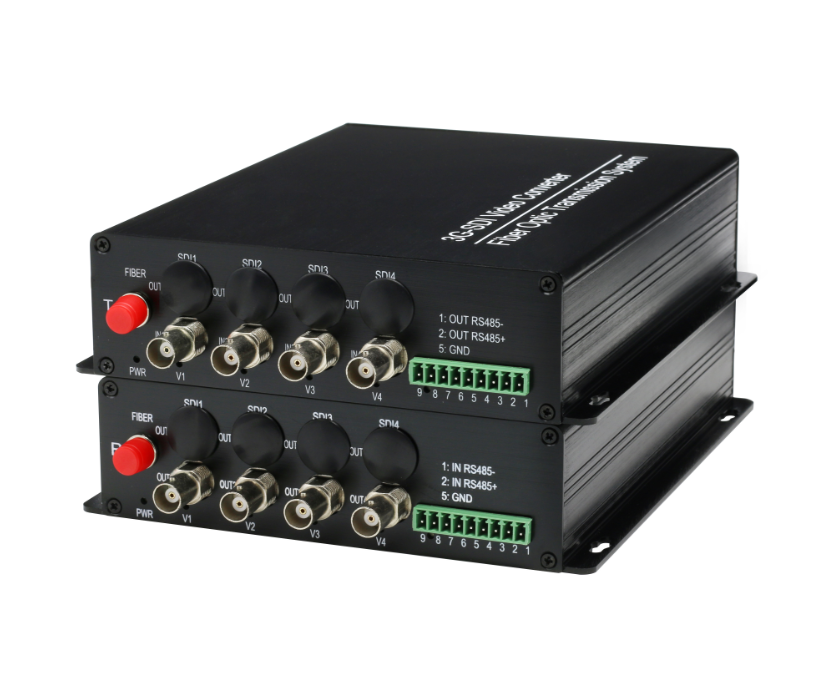

Balun 3G SDI Video Extender , 1-16Ch 1080p video to Fiber Converter
DC 5V 2A
Overview
SDI Video Digital Fiber multiplexer Internationally advanced SOC
digital signal processing technology and full digital video
non-compression transmission technology are used in full digital
video + optional optical transceiver, to real-time synchronize
one-way high-definition SDI video and data/ switching value in
single-core optical fiber and achieve lossless and high-quality
transfer
3G- SDI video signal can be transmitted through one single fiber with
non-distortion, high-quality, long-distance transmission. This
series of video to fiber converter is with Stable performance,
clear picture quality,and high Stability for LED Status Indication
on the body of device. The working status of devices can be
visually observed. At the same time,the switch
value,voltage,working status and other reverse useful signal
information can be controlled by data RS485.This makes our devices
more flexible when different customers’ request comes.
Features
- 1ch unidirectional 3G/HD-SDI video with embedded audio over one
fiber
- Range from 19.4Mb/s to 2.97Gb/s
- clock recovery
- Support all SMPTE 295M standard, 143Mb/s - 360Mb/s
- Support SMPTE 305M (SDTi), SMPTE 310M (19.4Mb/s), SMPTE 344M
(540Mb/s),M2S and DVB-ASI (270Mb/s) standard
- Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
- 150m automatic cable equalization, all the 2.97 Gb/s rate below(Belden 1694A)
- Optional network management system
- LED status indicators monitor the critical parameters
- Optional network system
- Support hot swap
- Support stand-alone, 1U rack mount and 4U rack mount

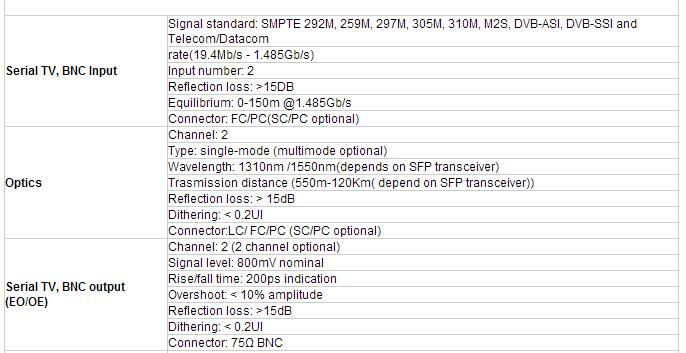

Specifications
Connection Diagram:
Shipping and packing:
Payment terms:
By T/T, Western Union, Paypal etc
Delivery time:
2-3 working days after payment for sample order
5-7working days after payment for mass order
