3G,SDI Video to Fiber converter transmitter+receiver for
intelligent monitoring system, CCTV,,1310/1550nm,uncompressed
Introduction
Internationally advanced SOC digital signal processing technology
and full digital video non-compression transmission technology are
used in HO-link full digital video + optional optical
transceiver, to real-time synchronize one-way high-definition SDI
video and data/ switching value
in single-core optical fiber and achieve lossless and high-quality
transfer. Advanced high-stability components are used in optic
circuit and core circuit of holink high-definition full digital
video optical transmitter and receiver, and all optical/electric
interfaces are in accordance with international standards, free of
adjustment prior to mounting and applicable in various operating
environments.
Features:
1.Full digital non-compression broadcast level transmission;
2. point -to-point, cascade connected, distributed network
connection supported, and with steady SNR;
3. level 3 lightning protection;
4. free of cross interference resulted from FM/PM/AM optical
transmitter and receiver;
5.all high-resolution video signal supported
6. Lossless video regeneration & relaying supported;
7. super optic dynamic range and free of adjustment prior to use;
8. surface coating technique;
9.fiber optic WDM/CWDM/DWDM technique;
10.1000 M optical fiber transmission, easy for update;
11. industry level ultra-broad temperature range (-40~+85),
adaptable to various environments;
12.on-power hot plug;
13.wall-mounted or 2U rack-mounted;
14.user's customization and OEM supported.
Parameter of 3g-sdi transmitter and receiver
| Product Name | 3G-SDI video converter |
| Model | HL-3GSDI-1V1D-T/RF |
| Description | Compatible with SDI and ASI signal,SDI/ASI signal self-adaption |
| Ports | 4 channel 3G-SDI, + 1 channel reverse data(RS485/232/422 data) |
| Transmission Distance | 20km-100km |
| Fiber Interface | FC, 1310nm/1550nm |
| Video Interface | BNC |
| Reflection loss | >15dB |
| Working Environment | Operating Temperature: -40°~ 85°C |
| Storage Temperature: -45°~ 95°C |
| Operating Humidity: 5%~95%, non-condensing |
| EMI Compatiblity | FCC Class A, CE |
| Total power consumption | 3w(Input:DC5V2A) |
| Power Supply | AC85-260V/50Hz |
| Warranty | 3 year warranty |
Application Industries
Intelligent transport monitoring system, safety and security
monitoring system, campus network, industrial monitoring (electric
power, chemical industry, steel, oil, railway and water conservancy
etc.); military monitoring (warehouse, guard and confidentiality
etc.) TV program transfer system.
Shipping and packing:
delivery: 3-5 working days after payment confirm
package: international standard package
shipped: by UPS,TNT DHL Fedex ,EMS.etc.
Contact Person : Lisa Xiao
Ho-link Technology Co., Limited
Add: 5 Floor A3,Xuxingda Industrial Zone,Zhoushi Rd,Shiyan
Town,BaoAn,Shenzhen,Guangdong,China
Tel: 0086-755-26407582-816 Fax: 0086-755-26403278
Mobile/WebChat/WhatsApp: 0086-15118060653
Email: lisa@holinktech.com Skype: lisaxiao03
Our Services
A , 24 hours of technical support,so if you have any technical
problems pls let me know,we will help you to solve any
problems you are facing to at the first time.
B, "One to one" heart to heart service .We look forward continuing
long-term services for you, but not just one or two times'
co-operation.
C, Perfect after-sales service :24-hour designated telephone
number, e-mail
FAQ
1.Can we get a lower price? Any Discount?
Yes,price is not a problem,everything could be negotiated based on
the quantity.
2.OEM,ODM Service is available?
Yes,V-Solution have strong ability to offer customers ODM&OEM
products of highest quality.
And it will requirement about your quantity.
3.How do you control the quality?
As a professional manufacturer we always pay attention to quality.
We have professional IPC
( run 1 million 480 thousand packets within10 seconds , the packet loss rate is zero) and all products will through Aging
test.So what you will receive are high quality and Competitive
products.
4.How about the Warranty?
There are 3 years for the warranty(it must Within the warranty)
Company Profile

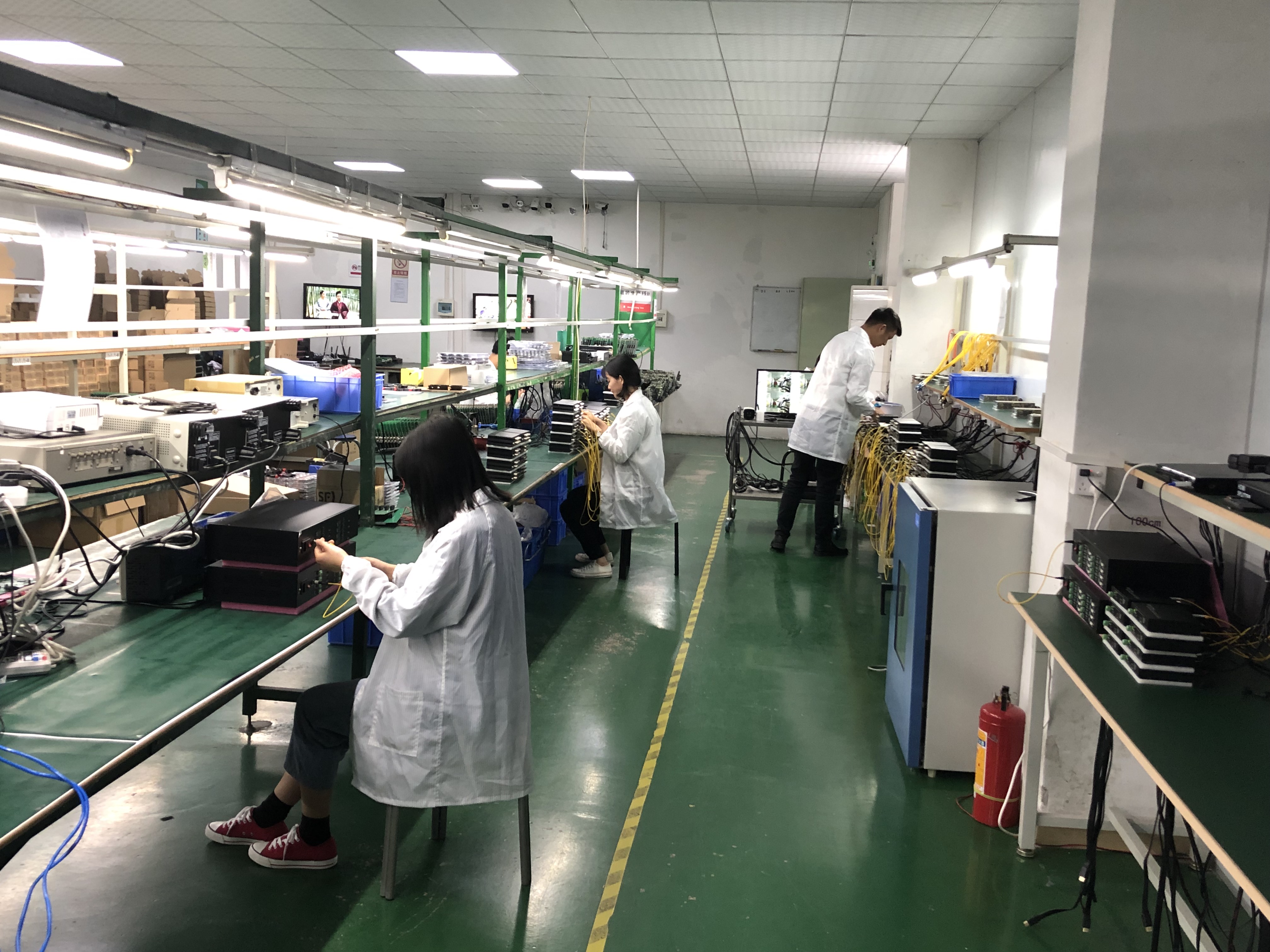

Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in
