4K hdmi video over fiber with RS232, DC 5V

    Buy cheap 4K hdmi video over fiber with RS232, DC 5V from wholesalers

    Buy cheap 4K hdmi video over fiber with RS232, DC 5V from wholesalers
    • Buy cheap 4K hdmi video over fiber with RS232, DC 5V from wholesalers
    • Buy cheap 4K hdmi video over fiber with RS232, DC 5V from wholesalers
    • Buy cheap 4K hdmi video over fiber with RS232, DC 5V from wholesalers

    4K hdmi video over fiber with RS232, DC 5V

    Ask Lasest Price
    Brand Name : Ho-link
    Model Number : HL-4KHDMI-1V-T/RL
    Certification : CE RoHS FCC
    Supply Ability : 500 pairs per month
    • Product Details
    • Company Profile

    4K hdmi video over fiber with RS232, DC 5V

    Product Description

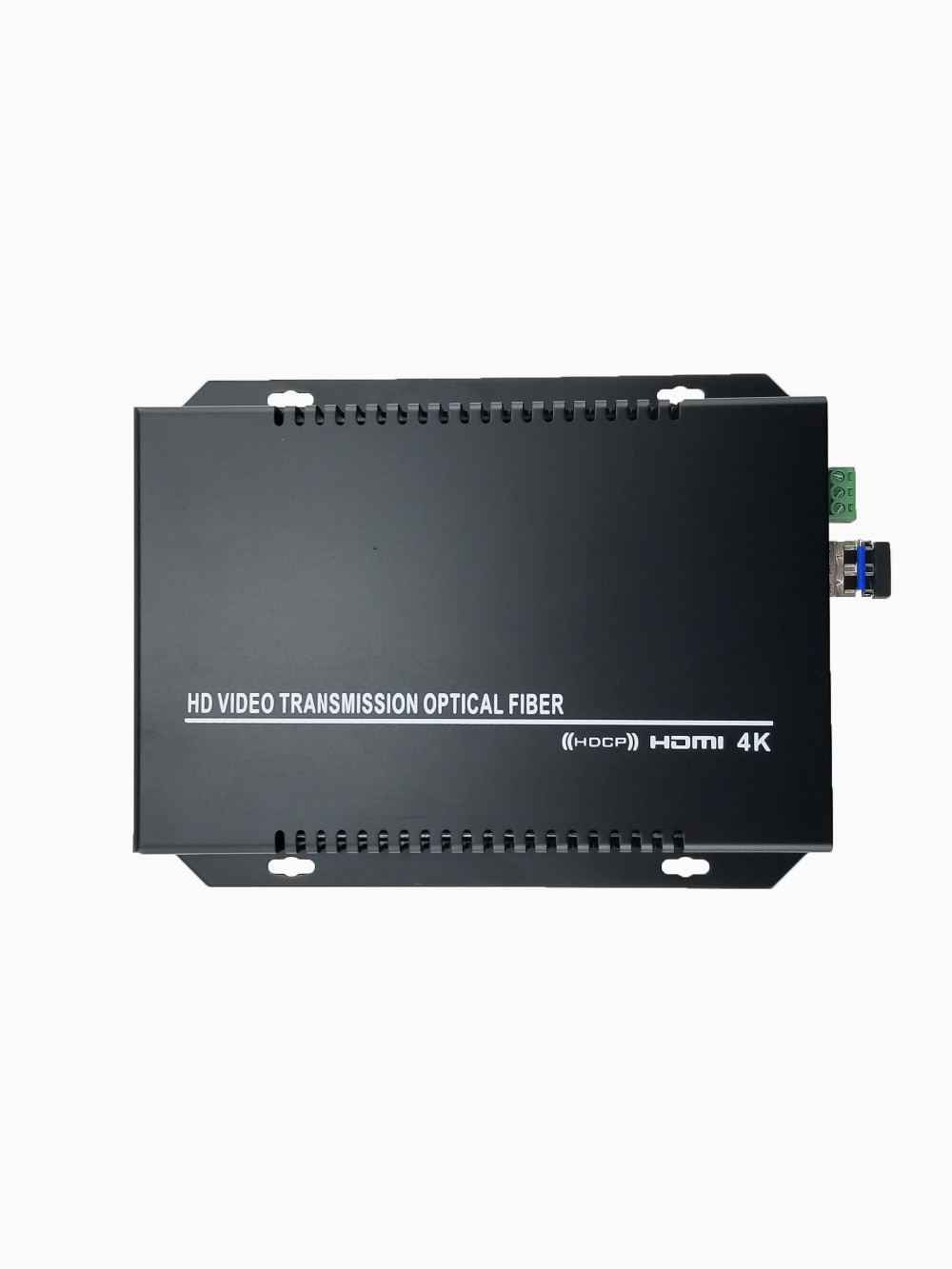

    4K hdmi video optical transceiver

    HDMI-4K is a HDMI optical transceiver which support 4k resolution high-definition HDMI optical transceiver, through the patent the HDMI signal conversion chip, converted into 10g difference signal, through the optical module and optical fiber to send and receive, realize the HDMI hd multimedia signal remote transmission, through different transmission distance of light module, implementation can reach 60 km long distance transmission, as far as this product is a no loss, no delay transmission, the requirements of the applicable to Gao Qingyuan distance transmission.Support HDMI 1.4 hd and 3 hd video signal transmission, can pass the EDID, support HDCP, resolution of up to 720p / 60hz, respectively, 1080 I / 60 hz, 30 hz, 1080 p / 1080 p / 60 hz, 1080 p / 120 hz, support 7.1 -channel PCM surround sound and audio compression, compatible with DVI signal transmission, support hot plug HDMI interface, low energy consumption, long distance, plug and play, the compatibility is strong, can achieve a more accurate display.

    Main features

    1) Full digital, unpack, non-delayed

    2) Transfer rate up to 10 GBPS

    3) The highest resolution: 3860 x 2160 @ 30 hz

    4) Support HDMI 1.4 and 3d

    5) Can be back propagation EDID

    6) Support HDCP standard

    7) Support 7.1 -channel PCM surround sound and audio compression

    Interface
    HDMI IN
    HDMI signal input
    AUDIO IN
    Audio signal input
    OPT OUT
    Optic output
    HDMI OUT
    HDMI signal output
    AUDIO OUT
    Audio signoutputal
    OPT IN
    Fiber input
    DC
    12V Power

    Specifications

    Working distance::

    Single mode:10KM (Support custom made:30KM 60KM)

    Multimodal:300M

    Data rate:10G/bit

    Transmission power:

    Single mode:-5dBm, typical

    Multimodal:-5dBm, typical

    Maximum sensitivity of the receiver:

    Single mode:-18dBm, typical

    Multimodal:-12dBm, typical

    Maximum resolution: 4K or 1080P@120HZ

    EDID: Supports EDID return and custom emulation or factory preset.

    Support HDCP

    Video input:1X HDMI

    Video Output:1X HDMI

    Detailed Images
    Other Products
    Our Company

    Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China.We manufacture full range fiber optic transmission products , from 4K UHD SDI/4K HDMI/3G SDI/HD SDI/ASI/HDMI/VGA/DVI/TVI/CVI/AHD/CVBS|Ethernet Media Converter|SFP Transceiver. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.
    Every month,we can turn out 10,000 units of above products.Before production,our raw mattrials are checked again to make sure they are compliant with RoHS Directives.And all our output is CE and FCC-marked,finding good markets in many countries and regions including United Kingdom,Spain,Italy,Poland,Turkey,The US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.
    Welcome to source high quality products at competitive prices from us.

    Packing & Delivery
    Our most professional packaging
    Transport of large trucks to the seaport
    And international transport cooperation
    Our Service

    1. OEM Manufacturing welcome: Product, Package...
    2. Sample order
    3. We will reply you for your inquiry in 24 hours.
    4. after sending, we will track the products for you once every two days, until you get the products. When you got the
    goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
    the solve way for you.

    FAQ

    Q1. What is your terms of packing?
    A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
    we can pack the goods in your branded boxes after getting your authorization letters.

    Q2. What is your terms of payment?
    A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
    before you pay the balance.

    Q3. What is your terms of delivery?
    A: EXW, FOB, CFR, CIF, DDU.

    Q4. How about your delivery time?
    A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
    on the items and the quantity of your order.

    Q5. Can you produce according to the samples?
    A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

    Q6. What is your sample policy?
    A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
    the courier cost.

    Q7. Do you test all your goods before delivery?
    A: Yes, we have 100% test before delivery

    Q8: How do you make our business long-term and good relationship?
    A:1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them,
    no matter where they come from.
