1. Support 1 channel bidirectional 12G-SDI video transmission, the
transmitter has video loop-back sharing HD audio and video function
2. Video support ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G),
ST-292 (HD) and ST-259 (SD), compatible with DVB-ASI and AES10
(MADI)
3. Both transmitter and receiver have clock recovery function
4. Signal input has automatic cable equalization (EQ) function,
output has drive (CD) function
5. Support 1 channel bidirectional 3.5 stereo audio independent
transmission
6. Support RS232/485/422 serial port data transparent transmission
7. Support 1 channel bidirectional tally signal
8. Single mode 10km transmission distance
9. Plug and play, without debugging

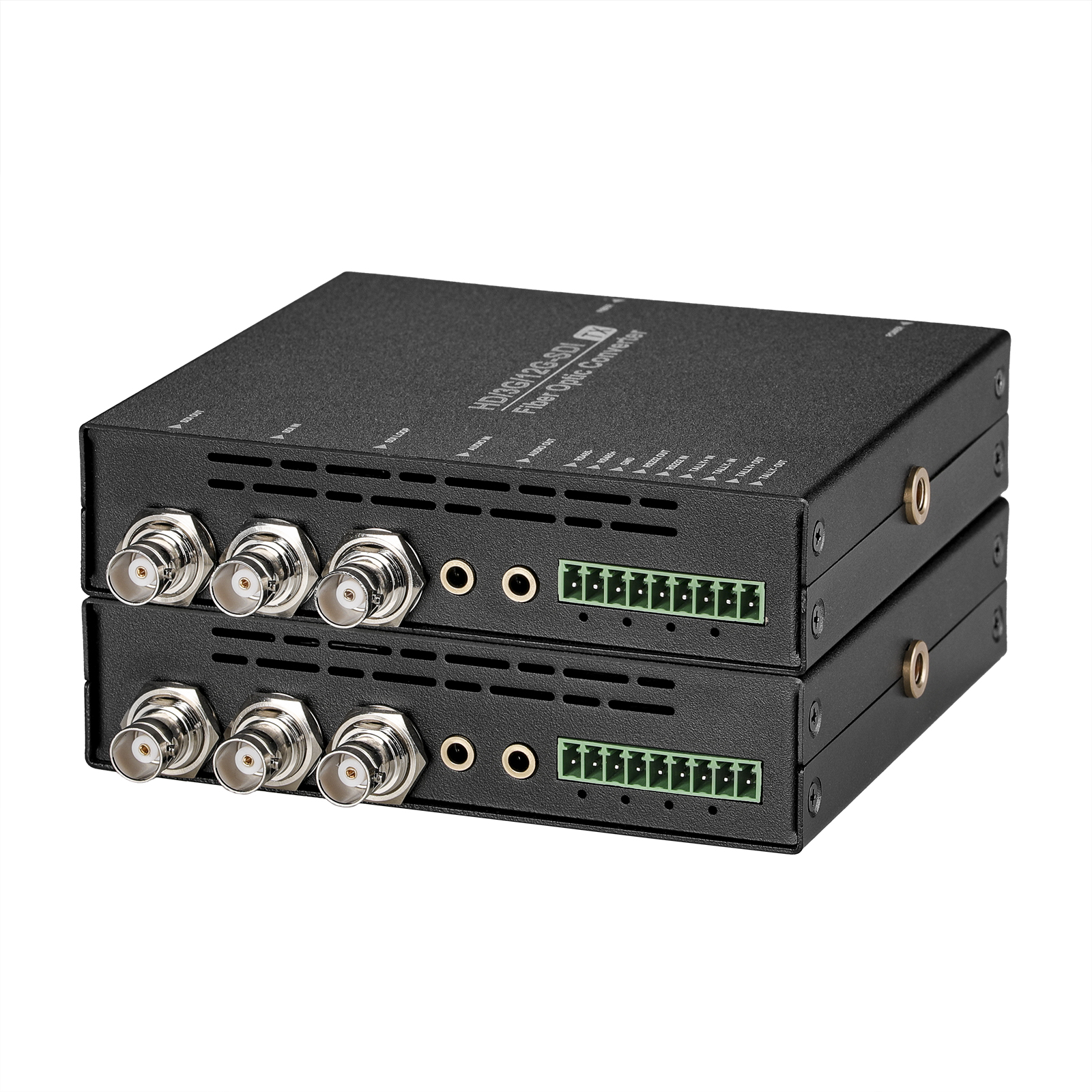

Pictures
Specification
| Fiber parameter |
| Wavelength | 1270/1330/1470/1490nm |
| Fiber type | 9/125um single-mode |
| Transmitter power | 0~-3dB |
| Receiver sensitivity | ＞-10dB |
| Fiber connector | LC |
| Optical module parameter | Single fiber single mode 10km |
| Video parameter |
| Protocol standard | SMPTE ST-2082 |
| SMPTE rate | 270Mbit/s,1.48Gbit/s,2.97Gbit/s,5.94Gbit/s, 11.88Gbit/s |
Support standard (digital video format) | SMPIE 259M SD-SDI 480i,576i |
| SMPIE 344M ED-SDI 480P, 576P |
| SMPIE 292M HD-SDI 720P, 1080i |
| SMPIE 424M 3G-SDI 1080P60Hz |
| SMPIE ST-2081 6G-SDI 2160P30Hz |
| SMPIE ST-2082 12G-SDI 2160P60Hz |
EQ mode cable transmission distance | 11.88Gbps at 75m |
| 5.94Gbps at 120m |
| 2.97Gbps at 200m |
| 1.485Gbps at 300m |
| 270Mbps at 600m |
| Signal amplitude | 800mV±10% |
| Impedance | 75Ω |
| Connector | The BNC meet the IEC169-8 standard |
| Audio parameter |
| Sampling frequency | 48K |
| Sampling depth | 24bit |
| Dynamic bandwidth | 96db |
| Total harmonic distortion (THD) | -88db |
| Signal to noise ratio(SNR) | 96db |
| Audio input/output impedance | 600Ω |
| Signal level | VPP 3.5V |
| Physical interface | 3.5mm stereo audio socket |
| Signal type | Stereo audio |
| Data parameter |
| Standard | Compliance with the EIA RS-232,RS-485,RS-422 standard |
| Physical interface | Industrial terminal/3.81mm |
| Baud rate | 50bps to 115200 kbps (support non-standard baud rates) |
| RS232 | 3-wire(RXD,TXD,GND),full-duplex, point to point communication |
| RS485 | 2-wire (A, B), half-duplex, point to multi-master-slave
communication |
| RS422 | 4-wire,full-duplex |
| RS485 circuit parameter |
| RS-485 pull-up resistance/pull-down resistance | 4.7 kΩ,4.7 kΩ |
| RS-485 terminal resistance | N/A,120 Ω and 120 kΩ |
| Tally signal parameter |
| Level type | TTL(5V)/LVTTL(3.3V) |
| Input level range | 3.3V~12V |
| Output level parameter | 0V or 3.3V |
| Default state | No-voltage output (0V) |
| Physical interface | Industrial terminal / 3.81mm |
| Mechanical parameter |
| The shell metal | Aluminum alloy |
| Product size | 116*128*30mm |
| Installation method | Desktop type |
| Package |
| Material | Kraft paper |
| Environment |
| Working temperature | -20°C ~+75°C |
| Storage temperature | -40°C ~+85°C |
| Relative humidity | 5 to 95% (non-condensing) |
| MTBF | > 10,0000 hours |
Application
1. SMPTE compatible with serial digital interface
2. UHDTV/4K/8K/HDTV/SDTV video
3. IP media gateway
4. Digital video processing and editing

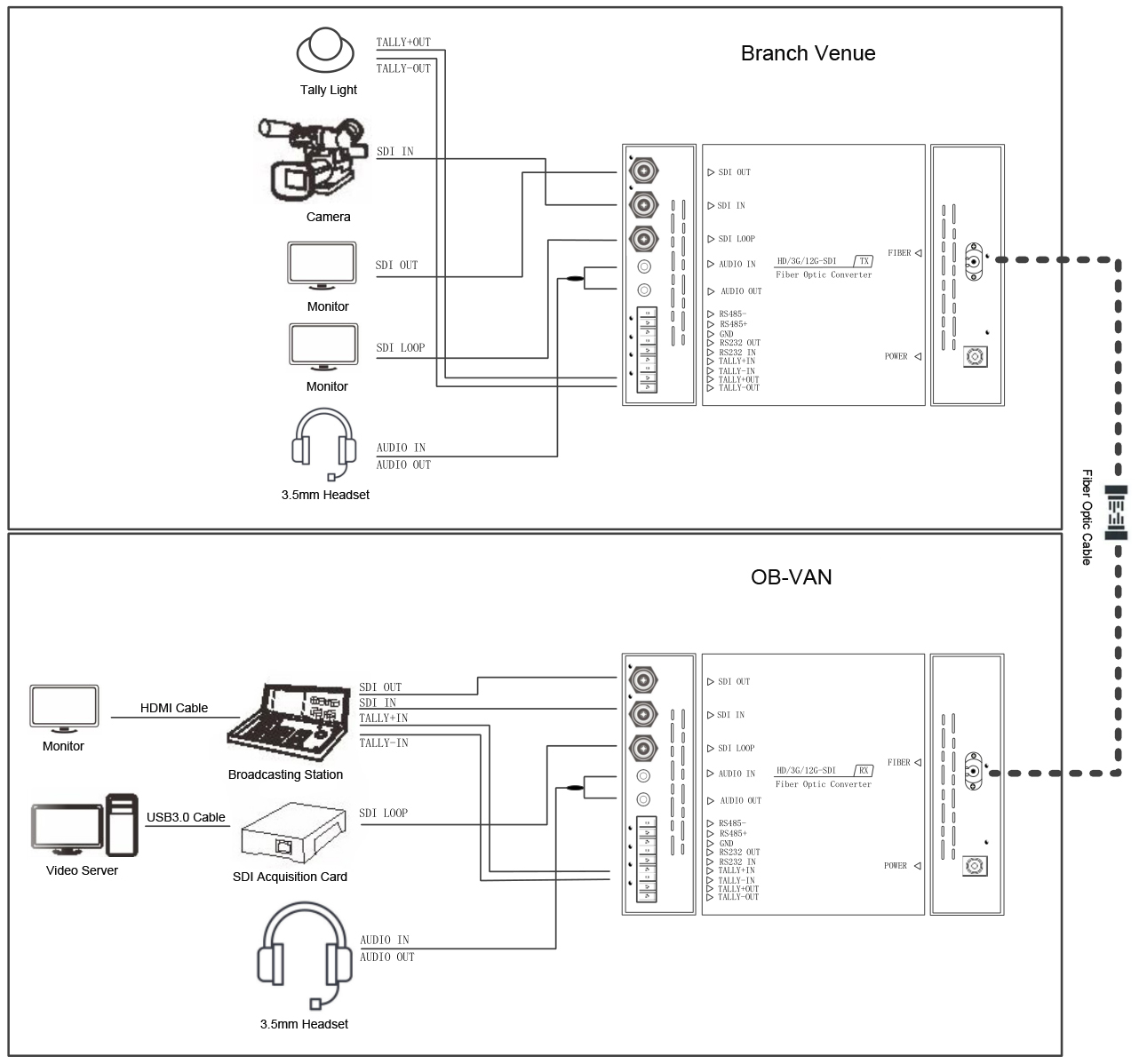

Connection Diagram
Reminder
1. It is recommended to use the short optical fiber link for the
first time to ensure that all the functions of the equipment are
normal, and then do long-distance transmission
2. The signal of the fiber optic converter can be output to the
power amplifier, but the audio source of the power amplifier can
not be output the audio source signal to the fiber optic converter,
otherwise the equipment will be burned
Troubleshooting of the indicator
1: Power indicator is abnormal (POWER)
Answer: Check whether the power adapter meets the equipment requirements
or the power adapter fails
Whether the socket is not tight or loose
2: Fiber indicator is abnormal (FIBER)
Answer: Check whether the optical fiber interface is loose and not plugged
in
Check whether the optical fiber is too attenuated
3: Video indicator is abnormal (VIDEO)
Answer: Check the signal source
Replace the video cable
4: Data indicator is abnormal (DATA)
Answer: Check the COM port, whether the baud rate is consistent
Check whether the serial port cable is connected backward
Attention
Lightning protection, static electricity, and grounding:
It is recommended that when installing the device, consideration
should be given to the impact of grounding by lightning and
prevention measures. Strong static electricity will damage the
optical device and data chip in the equipment. It is recommended
that when plugging/unplugging the data port of the optical
converter, please disconnect the power supply of the optical
converter first.
Fiber and optical components:
Be careful when plugging the optical fiber, as the optical
components of the optical converter are very fragile, and you
should avoid causing damage to the optical components. It should be
noted that the light source produced by the optical components of
the optical converter will be harmful to the eyes, so do not have
direct eye contact with the optical components ofthe optical
converter. If you need to detect the optical power of the optical
converter, please use the optical power meter.
Equipment and installation procedures:
1. Optical fiber installation: Please carefully insert the optical
fiber into the optical fiber interface of the optical terminal
after confirming that the optical fiber link meets the installation
requirements.
2. Equipment installation: The equipment can be distinguished
between transmitter and receiver, and it is stated clearly on the
label and printed on the chassis of the equipment.
