No delay uncompressed 1080P HDMI to Fiber extender,1Channel
HDMI+1CH Outside Audio+1Ch RS232/RS422 data,20KM,LC
Overview
HDMI Optical transmitter and receiver adopts the uncompressed
digital HD video and highspeed digital optical fiber transmission
technology advanced,It can transfer signal source(computer signal
source,VGAsignal source high digital DVD/DVR…) to long distance
terminal easily,with strong antiinterferance performance,ensure the
signal completed and stable
Features
- Full digital non-compression broadcast level transmission;
- point -to-point, cascade connected, distributed network connection
supported, and with steady SNR;
- level 3 lightning protection;
- free of cross interference resulted from FM/PM/AM optical
transmitter and receiver;
- 1080P high resolution HD audio and video signal;
- Lossless video regeneration & relaying supported;
- super optic dynamic range and free of adjustment prior to use;
- surface coating technique;
- fiber optic WDM/CWDM/DWDM technique;
- 1000 M optical fiber transmission, easy for update;
- industry level ultra-broad temperature range (-40°C~+85°C),
adaptable to various environments;
- on-power hot plug;
- wall-mounted or 2U rack-mounted;
- user's customization and OEM supported.
Technical Parameter
| HDMI High-Definition Digital Video Optical Transmitter and Receiver |
| Technical Parameters |
| Number of VideoChannels | 1 channel | |
| Video Bandwidth | TMDS MAX 10.8GHz |
| HDMI version | 1.0~1.2a,1.3 1.4 |
| Color depth | TMDS MAX 48bit/px |
| Supported VideoFormats | MAX 1080P@1920x1080/60Hz |
| Differential Gain | <1% (typical) |
| Differential Phase | <0.6° (typical)"1" |
| Video Interface | HDMI A Type |
| Optical FiberIndexes | Optical Port: FC (optional) Single-Mode:0~100KM Wavelength: 1310/1550nm |
| Expanded Options |
| Data Channel | RS485 (reverse) /422/RS232 and NRA/RZI/Manchester supported Physical Interfaces: Standard industrial terminal Operating Mode:
Simplex Transfer Rate 0 to 400Kbps Error Rate < 10-9 |
Product connection diagram
a. Fiber-optic video transceiver mark
T: fiber-optic transmitter
R: fiber-optic receiver
b. Power indication
Light on, Fiber-optic video transceiver is working.
c. Fiber interface
LC interface(SFP) (Warring:When the device is power on,don’t look
directly into the eyes,in order to avoid eyesight damage)
d. Receiver indication
Light on, Fiber-optic video transceiver is reciveing signal.
e. Video interface
T: HDMI video signal input interface
R: HDMI video signal output interface
f. Video indication
Light on, Fiber-optic video transceiver is reciveing video
signal,or transmitting video signal.
g. Audio indication
Light on, Fiber-optic video transceiver is reciveing audio
signal,or transmitting audio signal.
h. Data interface
reverse data output
Left: positive output data
Middle:negative output data
right:ground
i. Reverse data indication
Light on,data is transmitting .
Light off,no data signal.
j. Lock indication
Light on,video data and audio data is locked.

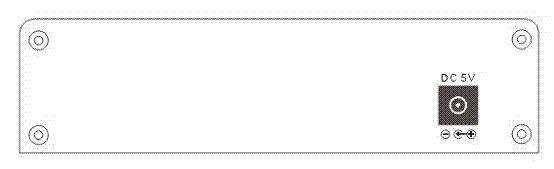

k. struction of the back bord
DC5V power supply unit for this device.
