1. Support downward compatibility of 4K*2K*60Hz resolution
2. Built-in EDID mode and EDID manual learning mode, support button
mode switching
3. Support EDID memory storage function after power off
4. Support unilateral power supply technology and can be powered
from the signal source HDMI port
5. Support dust prevention of fiber optic interfaces and have anti
detachment design to prevent the loss of dust covers
6. Support the power socket with lock to prevent the equipment from
falling off during operation
7. Support portable installation of rear long screws
8. Support single fiber transmission of 10km,compatible with
multi-mode and single-mode modes
9. Support status light display
10. Plug and play, without debugging

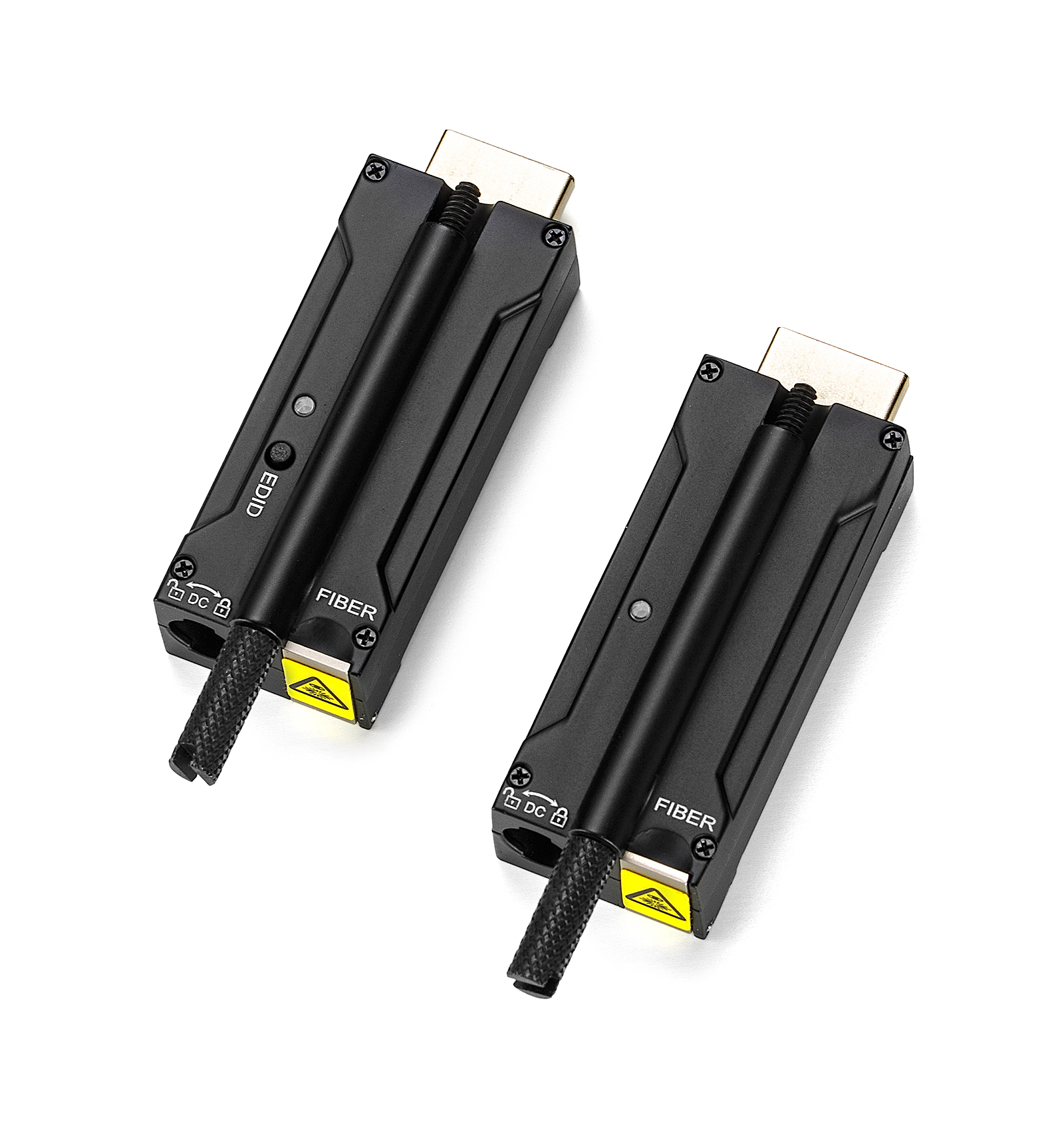

Pictures
Specification
| Fiber parameter |
| Wavelength | 1310-1550nm(single fiber) |
| Rate | 10Gbps |
| Transmitter power | ＞-3db |
| Receiver sensitivity | ＞-10db |
| Transmission distance | 10km |
| Fiber connector | LC |
| HDMI parameter |
| Version | HDMI 2.0 |
| Bandwidth | 10.2 Gbps |
| Resolution | 4K*2K*60Hz and downward compatibility |
| Color space | 4K60Hz YUV 4:2:0 4K30Hz RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Pixel clock | 340MHZ |
| Physical interface | HDMI Male |
| Power parameter |
| Power supply | 5V |
| Power dissipation | ＜1.5W |
| Physical interface | DC 3.5*1.35mm |
| Mechanical parameter |
| The shell metal | Zine-alloy |
| Dimensions (length * width * height) | 60*22*17mm |
| Net weight of product | 51.7g/piece |
| Way to install | Direct plug-in |
| Color | Black |
| Package |
| Material | Kraft paper |
| Package size | 210*160*46mm |
| Gross weight | 0.35KG |
| Other parameter |
| Working temperature | -20℃~70℃ |
| Storage temperature | -40℃~85℃ |
| Humidity | 0-95% (non-condensing) |
| MTBF | ＞100000 hours |
Application
1. SMPTE compatible with serial digital interface
2. UHDTV/4K/8K/HDTV/SDTV video
3. IP media gateway
4. Digital video processing and editing

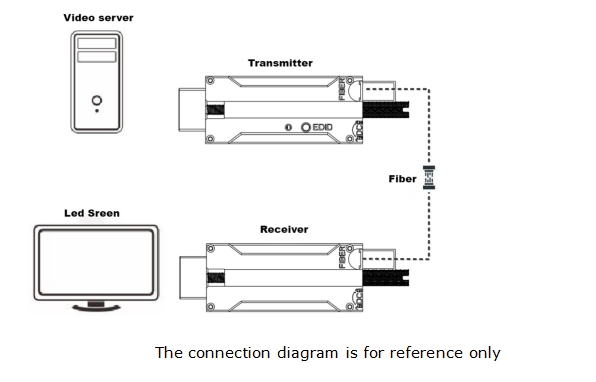

Connection Diagram
Reminder
1. It is recommended to use the short optical fiber link for the
first time to ensure that all the functions of the equipment are
normal, and then do long-distance transmission
2. The signal of the fiber optic converter can be output to the
power amplifier, but the audio source of the power amplifier can
not be output the audio source signal to the fiber optic converter,
otherwise the equipment will be burned
Troubleshooting of the indicator
1: Power indicator is abnormal (POWER)
Answer: Check whether the power adapter meets the equipment requirements
or the power adapter fails
Whether the socket is not tight or loose
2: Fiber indicator is abnormal (FIBER)
Answer: Check whether the optical fiber interface is loose and not plugged
in
Check whether the optical fiber is too attenuated
3: Video indicator is abnormal (VIDEO)
Answer: Check the signal source
Replace the video cable
4: Data indicator is abnormal (DATA)
Answer: Check the COM port, whether the baud rate is consistent
Check whether the serial port cable is connected backward
Attention
Lightning protection, static electricity, and grounding:
It is recommended that when installing the device, consideration
should be given to the impact of grounding by lightning and
prevention measures. Strong static electricity will damage the
optical device and data chip in the equipment. It is recommended
that when plugging/unplugging the data port of the optical
converter, please disconnect the power supply of the optical
converter first.
Fiber and optical components:
Be careful when plugging the optical fiber, as the optical
components of the optical converter are very fragile, and you
should avoid causing damage to the optical components. It should be
noted that the light source produced by the optical components of
the optical converter will be harmful to the eyes, so do not have
direct eye contact with the optical components ofthe optical
converter. If you need to detect the optical power of the optical
converter, please use the optical power meter.
Equipment and installation procedures:
1. Optical fiber installation: Please carefully insert the optical
fiber into the optical fiber interface of the optical terminal
after confirming that the optical fiber link meets the installation
requirements.
2. Equipment installation: The equipment can be distinguished
between transmitter and receiver, and it is stated clearly on the
label and printed on the chassis of the equipment.
